American Pacemaker Engine Lathe, with 16” swing over bed ways, 12” swing over cross slide, 54” center distance, 1-3/4” spindle hole, 1000 RPM, .002-.118 IPR feeds, tailstock, 12” 3-jaw chuck with hard jaws, Newall C70 digital readout
Toolmex Mdl. TUR630A/157 Engine Lathe, with 25” swing over bed, 14.6” swing over cross slide, 40”-157” distance between centers, 20HP main drive motor, 4.1 standard spindle bore, 18-1800 RPM, 3300# max load capacity, z-axis rapid traverse, MT5 tailstock, 17” bed width with TRI-V ways, 9900# machine weight, 3 & 4-jaw chucks, [2] steady rests, Newall 80C digital readout, chip pan, S/N: 50758

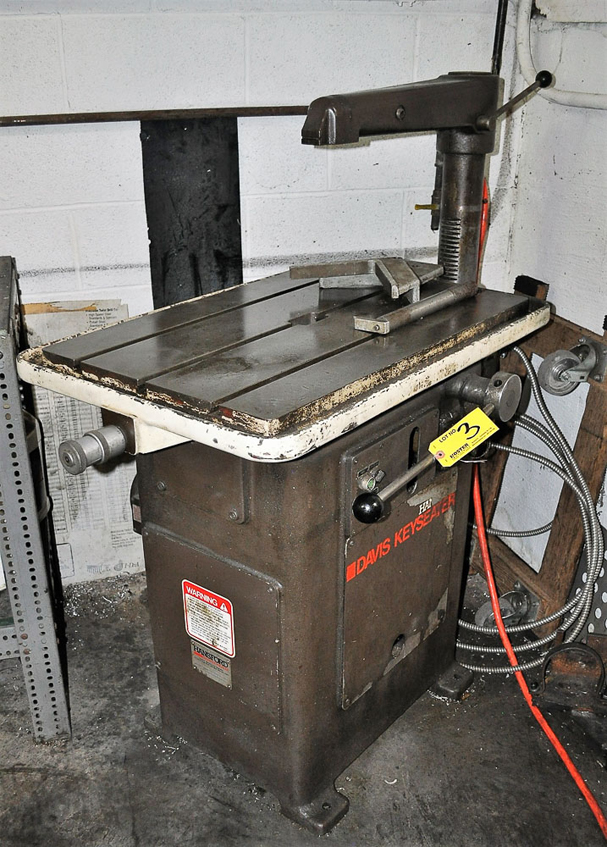

Hansford Davis Mdl. 15 Keyseater, with 1/16” – 1-1/2” capacity, 31” x 20” table, 19” throat, 12” max work height, 1.5” table movement, 4.5” stroke, 45 SPM, 4” cutter, 8” cutter, 12” cutter, 2HP motor, 1300# weight capacity, 40” x 44” x 48”, 440v, 3ph, S/N: 151072

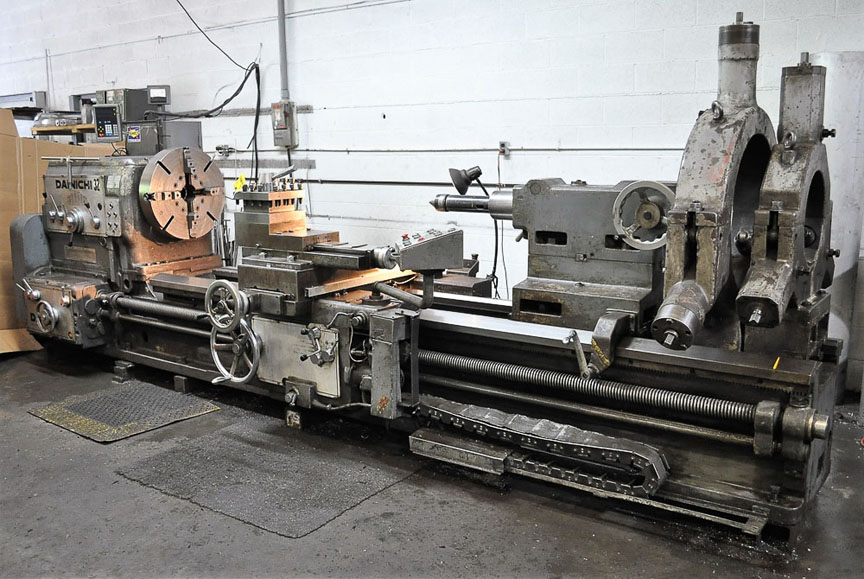

Danichi Mdl. DM-300 Engine Lathe, with 30” swing over bed, 124” distance between centers, 4” spindle bore, 21” swing over cross slide, 8-650 RPM, 20HP motor, 24” 4-jaw chuck, 15” steady rest, 20” steady rest, inch / metric threading, 14” removable gap, tailstock, 4-way rapid traverse on saddle, Newall digital readout, 15,000# max weight capacity, S/N: 14330 (1976)
CNC HORIZONTAL MACHINING CENTER:

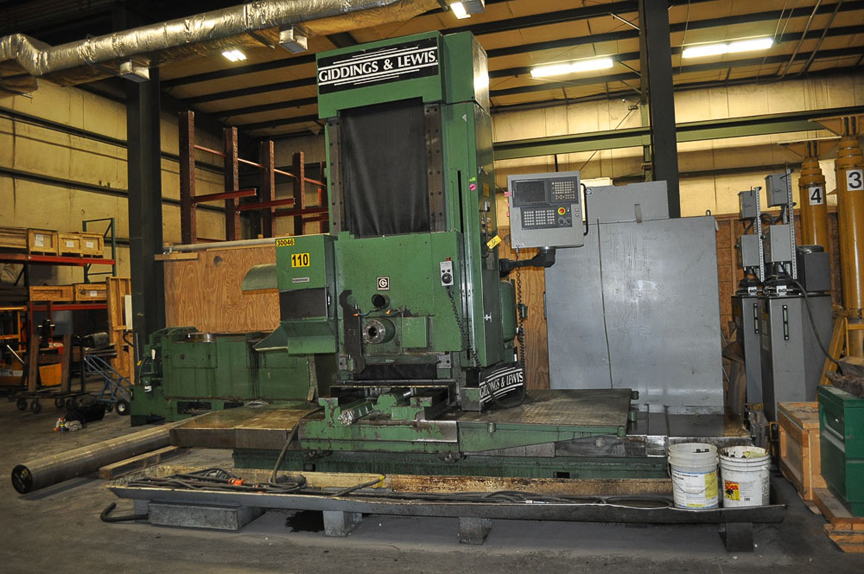

Giddings & Lewis Mdl. 987-15HS Traveling Column CNC Horizontal Machining Center, with New Fanuc Oi control, travels: x-72”, y-36”, z-24”, 30-3110 RPM spindle speed, CAT 50 spindle taper, 20HP DC continuous spindle, 48-tool changer, coolant flood & low pressure thru spindle, chip conveyor, [2] 22” OD built-in pallet rotary tables, B-pallet rotation 360,000 position, 84” length x 25” wide pallet size, S/N: 987-5028-88 [Located @ 5320 S. National Dr, Knoxville, TN 37914]
CNC VERTICAL MACHINING CENTERS:
Ameri Seiki (Viper) Mdl. DM-100 Double Column CNC Vertical Machining Center, with Mitsubishi Meldas 600M Series, 64” x 80” table, 22,046# table load capacity, travels: x-61”, y-87”, z-36”, 40-6000 RPM spindle speeds, 35HP spindle drive, CAT 50 taper spindle nose, 7.5” – 44” spindle nose to table, 102” distance between column, 30-position automatic tool changer, 44# max tool weight, 4.92” x 13.8” max tool size, 220v, absolute encoder controls, 3-axis position feedback, remote manual pulse generator, hydraulic counter balance, Turcite “B” way surface, [3] chip conveyors, coolant, spindle oil cooler, 1-piece base, 224” x 274” floor space, 55,115# max weight, S/N: 003445 (New 2002) [Located @ 5320 S. National Dr, Knoxville, TN 37914]
Haas Mdl. VF5 CNC Vertical Mill, with 62” x 23” table, 4” high slotted sub table, travels: x-50”, y-26”, z-25”, rapids x/y/z 710 IPM, 20HP spindle drive, 7500 RPM spindle speed, CAT 40 spindle taper, 20-position automatic tool changer, programmable coolant, geared head, remote joy handle, floppy drive, 14,600# max weight, S/N: 17407 (1999)
Haas Mdl. VFOB CNC Vertical Mill, with 14” x 26” table, CAT 40 taper, 20-position automatic tool changer, 4”-24” spindle nose, travels: x-20”, y-16”, z-20”, 7500 RPM max, 20HP spindle motor, rapid 710 IPM, 88” long x 93” wide x 106” high, 8000# max weight, brushless servo, floppy drive, chip conveyor, rigid tapping, S/N: 24981 (2001)
CNC TURNING CENTERS:
Okuma Mdl. 762S-BB Crown Big Bore, with 21.65” max swing over bed, 15.75” max swing over cross slide, 10.63” max turning diameter, 19.68” max machine length, 3.15” spindle bore, travels: x-7.28”, z-20.47”, A2-8 spindle nose, 3500 RPM spindle speed, 12-station turret, 10” Kitagawa chuck with hard jaws, OSP700L conversation programming, 23HP spindle, 9900# max weight, chip conveyor, S/N: 1161
Okuma Mdl. 762S-BB Crown Big Bore, with 21.65” max swing over bed, 15.75” max swing over cross slide, 10.63” max turning diameter, 19.68” max machine length, 3.15” spindle bore, travels: x-7.88”, z-20.47”, A2-8 spindle nose, 3500 RPM spindle speed, 12-station turret, 10” Kitagawa chuck with hard jaws, OSP700L conversation programming, 23HP spindle, 9900# max weight, chip conveyor, S/N: 0259
VERTICAL BORING MILL:

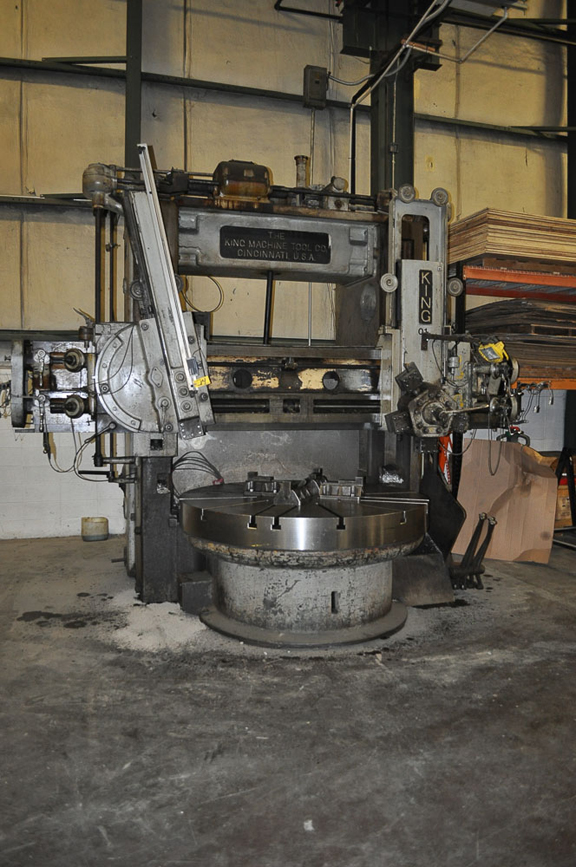

King 72” Vertical Boring Mill, with 72” table, 79” max swing, 60” height under rail, 1.3 – 45 RPM table speeds, feeds .003 to .500 IPR, 30HP main motor, 36” vertical travel of turret, 60” right hand turret travel cross, 214” machine width left to right, 156” machine depth front to back, 158” machine height, 55,000# max weight, [2] turret heads, rapid traverse on all heads, power rail elevation, flush mounted machine, no pit required, S/N: 2545[Located @ 5320 S. National Dr, Knoxville, TN 37914]
HORIZONTAL BANDSAW:
Doall Mdl. C-916A 9” x 16” Horizontal Bandsaw, with 2HP motor, 3ph, 480v, 159” band length, 105-275 RPM variable speed, 3/16” – 24” index, 9” x 16” square capacity, 10-3/4” round capacity, 45-90° adjustable mitre cut, recirculation coolant system, 1” x .035” x 158” blade size, automatic feed, S/N: 502-95508
